Libraries

Introduction

HDL libraries are a very powerful feature of the HDL languages. Sigasi Visual HDL (SVH) makes it easy to configure and use them. In this chapter, we assume that the basic concepts of HDL libraries are understood. We will explain how they are implemented in SVH.

Like with any HDL tool, SVH needs to know where the libraries are located on the file system. We will describe how the library configuration can be examined and modified using the GUI.

We will also present some use case about how to set up libraries with SVH to organize your projects.

Examining the library configuration

You can examine the library configuration in the Libraries View and in the Project Explorer view. The Libraries view shows how design units are mapped. The Project Explorer view show how VHDL or SystemVerilog files are mapped.

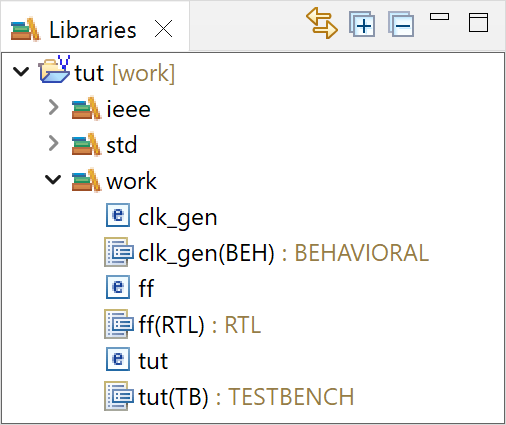

In the Libraries view you can see a tree of all libraries in your projects. You can open each library to see all contained design units as well as their description style.

In the Project Explorer view each physical file or folder is annotated with the library it belongs to, between square brackets:

What you see here is the initial library mapping of a demo project (you can create such a project by selecting File > New > Other > Tutorial VHDL Project or Tutorial SystemVerilog Project).
In the screenshot we see a project called Demo, with a folder named Common Libraries. In that folder, you see the typical standard libraries (std and ieee) upon which all VHDL projects depend. The demo project itself consists of a few VHDL files.

Next to the project’s name Demo, is the annotation work. This means that, barring any overrides, everything in the project will be stored inside the work library.

Lower down, we see overrides. For example, the STD folder has an annotation std. This means that, again barring any further overrides, the entire contents of the STD folder will be mapped into the library std. There are no limits to the number of overrides that can be performed. If this needed, any individual file can be mapped to a separate library.

Modifying the library configuration

The library mapping for project files can be modified in the Libraries and Project Explorer view.

Select a file or a folder in the Project Explorer and right-click.

You get a Set Library context menu, with a number of options:

  • Select Exclude from build to exclude the file or folder from any library
  • Select New Library… to define a new library and map the file or folder to it
  • If one ore more folders are selected, the folder can be added to a library with the folder name(s)
  • Select the name of an existing library to map the file or folder to that library

When you map a file into a library, only that file is affected. However, when you map a folder into a library, then everything in that folder will be mapped into that library. Any overrides in the folder and its sub-folders will be removed. When you are defining the library mapping for a new project you should map from top to bottom.

So in the case of our Demo project, you would change (if work is not a good default) the top folder’s mapping first and then override the mapping in the sub-folders.

When you are changing the library mapping of a project, the project will be rebuilt completely. In order to avoid several consecutive rebuilds while you are setting up your libraries, you can temporarily disable the automatic rebuilds, until you are finished setting up your library mappings. You can do this by disabling the Project > Build Automatically option.

To exclude a file from all libraries, the library mapping context menu provides an Exclude from build option. You can apply that to any file or folder in the project. SVH will then assume that the corresponding resource is not a part of the project and will not include that resource in a project build. This is typically useful when you have stale copies of HDL files or folders lying around that you want simply to be ignored.

(System)Verilog include files

(System)Verilog include files are always excluded from the build. Any file that is included in another design file gets excluded from the build, even if it has an extension that would normally identify it as a design file, e.g. .v or .sv. It often doesn’t make sense to compile include files by themselves. Instead, include files are compiled in the context of the file in which they are included.

Configuration file

All library configuration information is stored in the .library_mapping.xml file in the root of your project. If you edit this file, your project will be cleared and rebuilt automatically (a so-called Clean Build).

SVH only writes changes to this configuration file when you make changes to the library configuration with the context menu in the Project Explorer. When you do make changes, SVH first checks that all paths in the library configuration still exist. If a path no longer exists, it will be removed from the configuration file. Note that the library configuration file is case-sensitive, even on Windows.

Library configuration warnings and Quick Fix

If the library mapping file contains invalid entries, there will be a warning on the .library_mapping.xml file. This warning will show in the Project Explorer, in the editor and in the Problems View.

An associated Quick Fix is available through the Problems View. When invoked, it will remove all invalid entries from the .library_mapping.xml file.

Common Libraries

Each project has a folder called Common Libraries. This is where reusable libraries go: either vendor libraries, third party IP libraries or your own reusable libraries. By default, the STD and IEEE libraries are added to this folder. The Common Libraries folder behaves like any other folder. You can delete it, rename it and apply a different library mapping. In most cases, however, the default configuration is just what you need.

In any newly created Sigasi project, the Common Libraries folder contains the VHDL files of the IEEE and STD libraries.

If your project doesn’t have a Common Libraries folder, you can just create it by right-clicking the project in the Project Explorer and selecting the New > Folder dialog. In the New Folder dialog, select Advanced and Virtual Folder and name the folder Common Libraries.

How is Common Libraries different from another folder?

  • Common Libraries by default is a virtual folder. This means that it is not a real folder in the project directory and it can only contain references to folders on your file system.
  • Files in Common Libraries are supposed to be error free. SVH will not mark errors or warnings in these files.
    • Next to these, a few other libraries’ errors and warnings are never marked, regardless of their location. These libraries are: std, ieee, altera_mf, altera, XilinxCoreLib, unisim, mentor, lpm, simprim, std_developerskit, unimacro, and modelsim_lib.
  • While you work on your project, you don’t want to edit the files in the Common Libraries, but you need them to compile your project.
  • If you activate an external compiler, files in Common Libraries are supposed to be pre-compiled. If you tell SVH to compile your project using an external compiler, the Common Libraries are skipped. You need to pre-compile them yourself and let your compiler know where the compiled libraries are. For ModelSim, you can use the “modelsim.ini” file for this. If your project root contains a “modelsim.ini” file, it will be used instead of the default “modelsim.ini” file.

Manually Adding Files to Common Libraries

To add files to the Common Libraries folder, locate a folder with HDL files on your file system using the Project Explorer or the file explorer of your OS and drag the folder with HDL files to the Common Libraries folder.

Alternatively, you can right-click the Common Libraries folder and select the New > Folder dialog where you can use the Advanced » settings to create a Linked Folder pointing to the actual folder location that contains the files you wish to add to the Common Libraries.

Need to add third-party libraries? Learn how here.

Pre-compile Common Libraries

This section links to various recommendations on to pre-compiling the simulation models of external libraries in the Common Libraries, depending on the external compiler.

AMD/Xilinx

Intel (formerly Altera)

GHDL

The GHDL manual documents precompilation of Vendor Primitives here .

Riviera-PRO

If you’re using Riviera-PRO, Aldec has an article on Compiling Xilinx Vivado Simulation Libraries for Riviera-PRO .

VUnit

Running VUnit tests

You don’t need to pre-compile VUnit libraries for running VUnit tests. The VUnit framework compiles its own library when needed. If you’re using libraries like OSVVM, you need to call add_osvvm() in run.py to tell VUnit to also compile the OSVVM library.

Further documentation on using VUnit in SVH is available here.

External compiler in a VUnit project

If you want to configure an external compiler in a VUnit project (e.g. for additional syntax checking), you need to ensure that the compiler has the VUnit library. Otherwise, the compiler will flag all VUnit constructs in your HDL code as errors.

This script demonstrates how to compile and enable the VUnit library for Modelsim and Questa. Run this script in the folder where you want to install the compiled VUnit library. This should be outside your project folder. The script takes the path of your VUnit installation as a parameter. Once the compilation is finished, go to your project folder and run these commands:

vmap -c  # only if your project folder doesn't contain modelsim.ini already
vmap <folder_where_the_script_ran>/vunit_lib vunit_lib

Note that the OSVVM library is shipped with Modelsim, so you won’t need to compile it yourself.

For other external compilers, a similar approach is needed. Customers who need help with that are welcome to contact support.

What if I broke my Common Libraries folder?

If you have modified the Common Libraries folder, you can always revert it back to the original state. Right-click on the Common Libraries folder of your project in the explorer view and apply menu-entry Set Library > Reset Common Libraries.

Resetting the library mapping

SVH contains two functions to reset all or part of the library mapping.

  • Reset Common Libraries updates the common VHDL libraries to the version (‘93, ‘2002, ‘2008, ‘2019) required by your project. User-defined common libraries remain untouched. To access this function, right-click the Common Libraries folder inside your project in the Project Explorer and select Set Library > Reset Common Libraries.

  • Reset Library Mapping resets the entire library mapping of your project. After resetting the library mapping, Common Libraries are reset as above, and all design files are mapped to library work. Note that this action cannot be undone, so only use it when you want to rebuild the library mapping from scratch. To access this function, right-click your project in the Project Explorer and select Set Library > Reset Library Mapping.

IEEE Vital

See How can I use the IEEE Vital libraries with Sigasi Pro?

Shared libraries

SVH allows you to share libraries between multiple projects. The easiest way to do this, is to develop each library in a separate project and configure the Project Dependencies accordingly. To configure the project dependencies, right click the project (the one that uses the shared library) and select Properties. Next click Project References and mark the library project as referenced project.

Adding Third-Party Libraries to a Project

Sigasi Visual HDL provides an easy way to add libraries from Quartus or Vivado or standalone libraries (e.g. UVVM or UVM) to your projects. Different versions of these tools and libraries can be configured, allowing you to easily switch between them.

Library Database, Tools and Libraries

The Library Database stores all third-party libraries. Once libraries are extracted into the Database, they can be used in any Sigasi project.

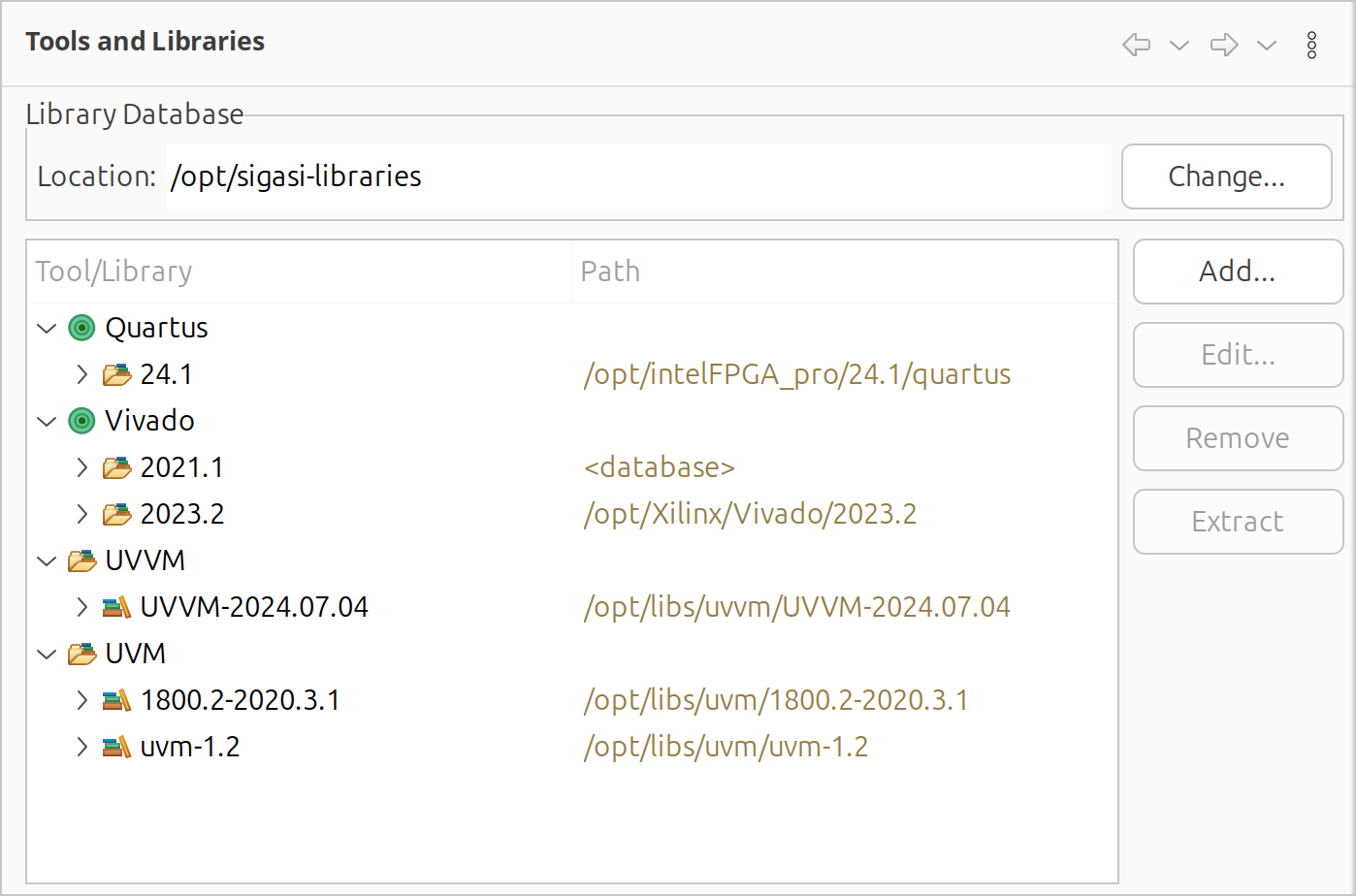

To manage a Library Database, you can go to Window > Preferences > Sigasi Visual HDL > Tools and Libraries preferences page. On this page, you can see the location of the current Library Database, which libraries are available in this Database, as well as all configured tools and libraries that can be extracted into the Database.

Initially, the Database is empty. Adding a tool will populate the Database with libraries provided by this tool. When a standalone library is added, it will also be copied to the Database. Note that extracting tool libraries may take a while. If needed, the tool or library configuration can be changed or, if you don’t need it anymore, it can be removed from the Library Database as well.

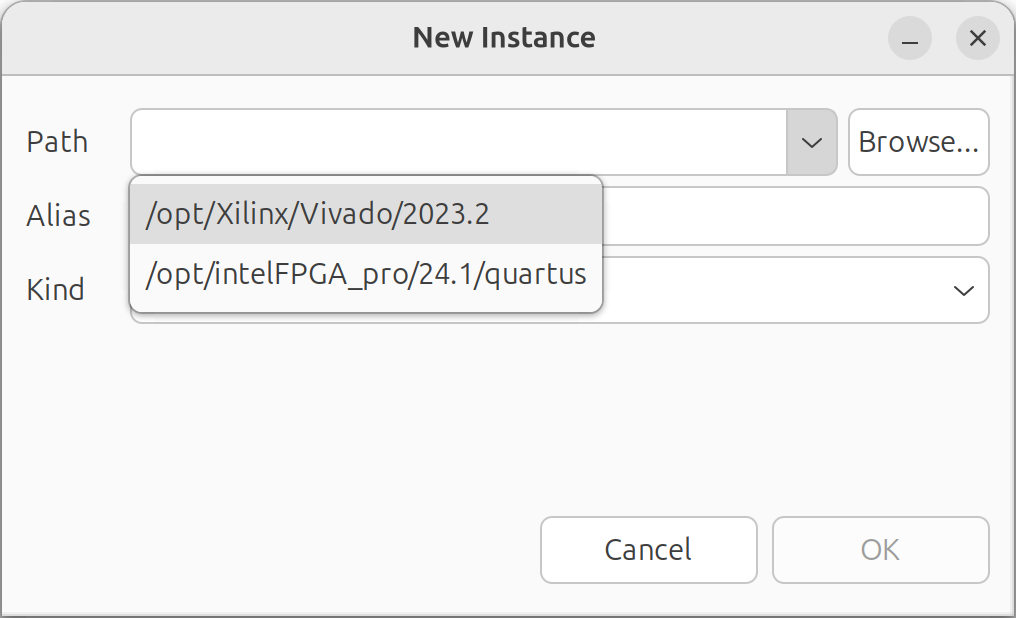

When adding a new tool, you can find a list of detected tool paths in the drop-down menu. Use Browse... if your tool isn’t there.

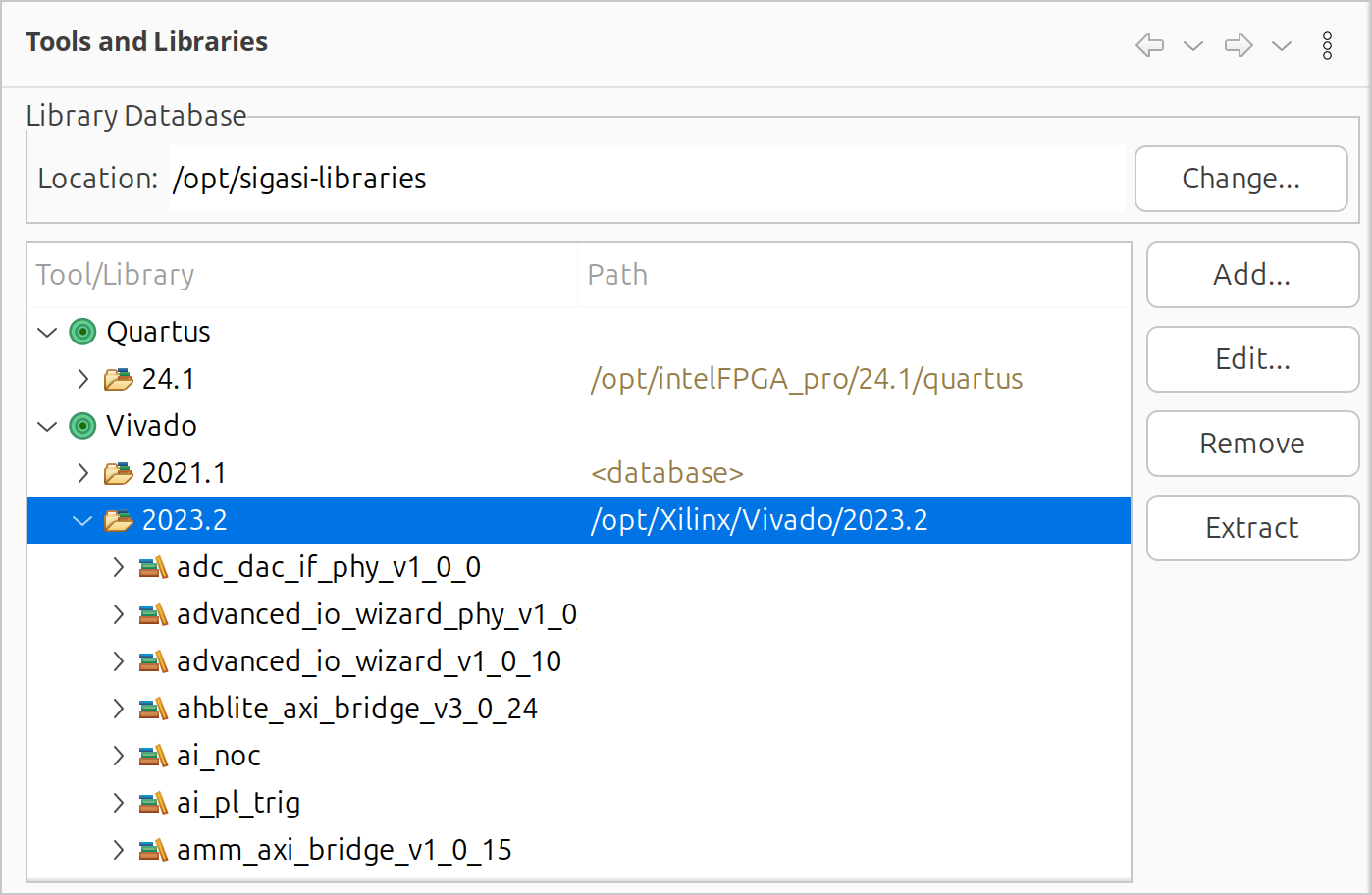

You can expand tool entry to see what libraries are available for this tool in the Library Database:

It’s good practice to use a tool or library version as its alias; however any identifying string can be used, e.g. latest, stable, etc. The Library Database is self-sufficient, so it’s possible to distribute it between SVH users to ensure everyone uses the same library versions. You can also share it between multiple Sigasi projects.

By default, the Library Database will be located inside a workspace storage directory from Eclipse. If you are planning to reuse the Library Database, you can choose a different location. When selecting an empty directory, you’ll be given options to copy an existing Database or extract all added tool libraries and standalone libraries into this new location. You can also use the new location as is and manually extract libraries.

If you have a previously created Library Database, you can select it instead of creating a new one. In this case, if there’s no configuration added for tools and libraries available in the database, a <database> marker will be shown instead of their paths. You can see which libraries are present for a tool by expanding it. You can add more tools or libraries or remove those that are already present in the database as well.

Note: A Library Database can also be created through CLI.

Common Libraries

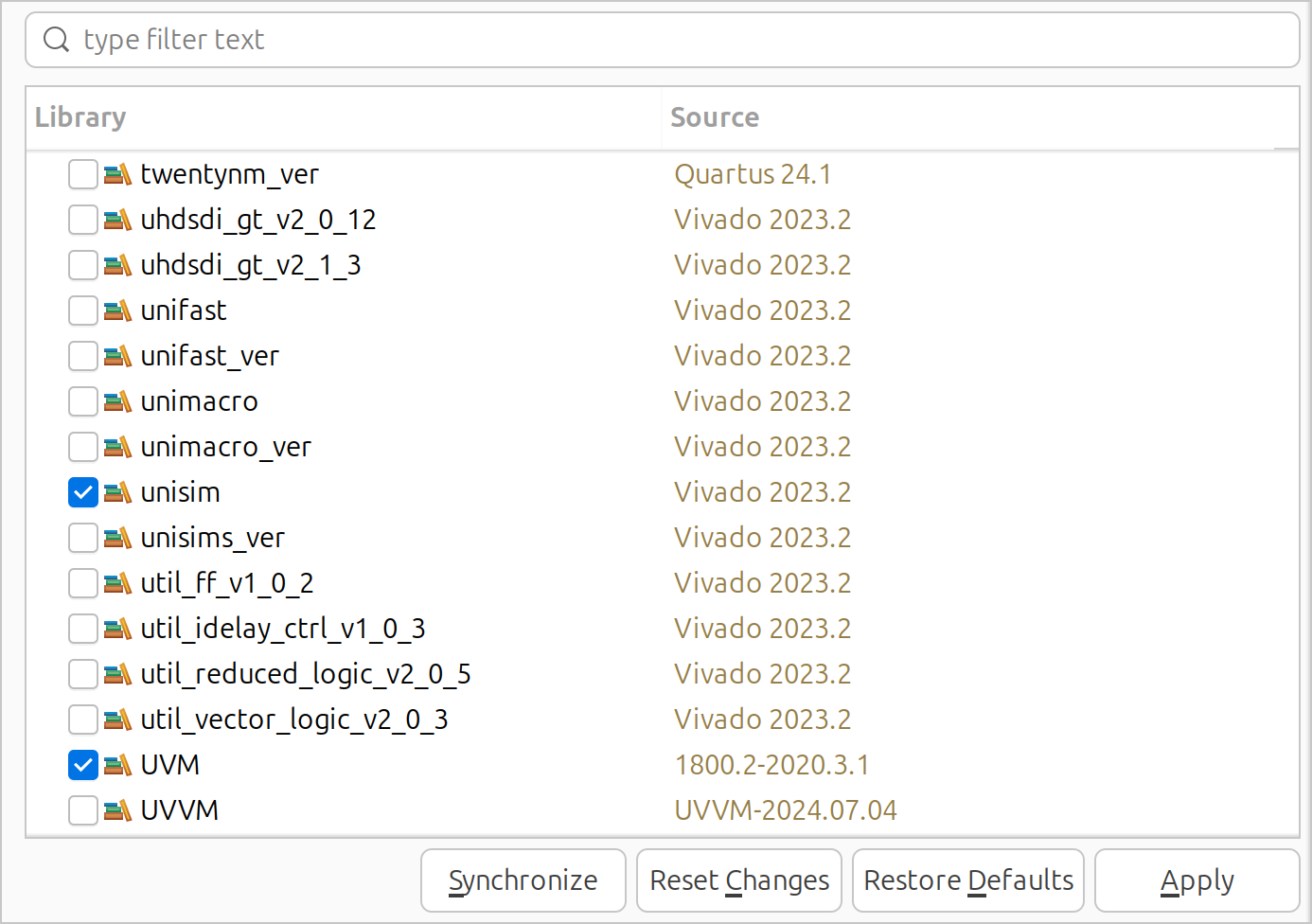

Once all libraries you need are in the Library Database, you can open properties for your project (Properties > Common Libraries) and select what libraries you want to use (if you don’t need them later on, you can deselect them here as well). After pressing the Apply button, selected libraries will be linked to your project in the Common Libraries folder (while deselected libraries will be removed). In a “Source” column, you can see which library or tool version is used.

Note: If project configuration for a library is out-of-sync with an intended library layout (e.g., library files mapping was manually changed), this library will be marked as (out-of-sync) on this page. Pressing the Synchronize button will fix the configuration of all libraries that are out-of-sync.

Active Tools and Libraries

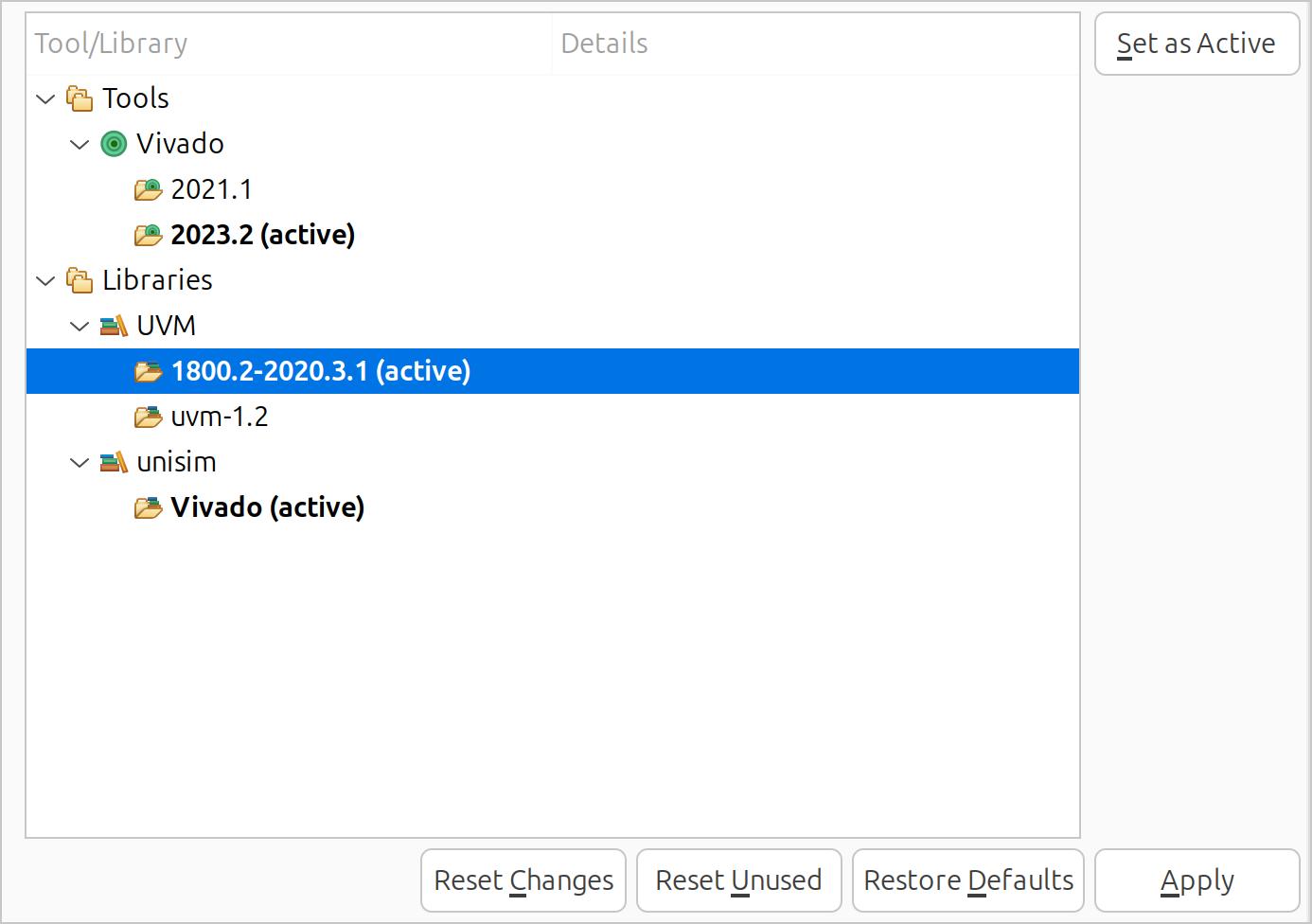

On the Active Tools and Libraries project properties page you can see which versions of libraries and tools are currently being used by your project. If there are multiple versions of tools or libraries available in the Library Database, you can change the version that should be used by a project. Select the desired version, and pressing Set as Active. Don’t forget to press Apply after you’ve made changes.

Migration from Sigasi Visual HDL 2024.1

This functionality to add third-party tools and libraries was first introduced in SVH 2024.1, but underwent a major overhaul in SVH 2024.2, resulting in changes to the format of the Library Database. If you’ve already added tools or libraries in SVH 2024.1 and used them in your projects, after updating to SVH 2024.2 or newer, you’ll see that corresponding library files in Common Libraries folder can not be resolved anymore. In order to update your project setup, you have to:

  1. Re-extract libraries on the Window > Preferences > Sigasi Visual HDL > Tools and Libraries preferences page by pressing Extract button for added tools and libraries. If you used automatically detected tools in SVH 2024.1 you’ll have to add them explicitly first. Learn more
  2. Ensure project configuration for libraries is up-to-date. Go to the project Properties > Common Libraries page, and if there are out-of-sync libraries, press the Synchronize button to update the project configuration. Learn more

Library errors from external compilers

If you are using the External Compilers, the external compiler can also put error markers on library clauses. You can easily verify this by checking the prefix of the error message (e.g. vcom: for vcom errors). Consult the Libraries section of the external compiler integration for more information on configuring libraries for your external compiler.
