Since version 3.6, Sigasi Studio has a Quick Fix to automatically add the VUnit vunit_lib VHDL library to your project.

In Sigasi Studio 4.1, VUnit Integration was added. The instructions below are outdated. Use the manual page on VUnit instead.

About VUnit

VUnit is an open-source unit testing framework for VHDL/SystemVerilog that helps to write, and automatically run, tests. The VUnit project was started by Lars Asplund  from Synective Labs and Olof Kraigher . The source code is hosted at GitHub . VUnit automatically scans your projects for unit tests (aka test benches), runs them with your favorite simulator and reports you the results. This automation helps to run tests frequently and iterate faster.

The VUnit scripts are written in Python, so first make sure python is installed on your system. The recommended way to install the latest stable release of VUnit is via pip. On most systems running the following command should do the trick:

pip install vunit_hdl

Make sure you use vunit_hdl and not vunit. The latter is a completely different Python library.

You can check that VUnit is installed correctly by for example running:

pip freeze

In the list of installed Python packages you will find a vunit-hdl entry and its version number.

Using VUnit in Sigasi Studio

If you want to use VUnit in your VHDL testbenches. You need to add a library clause for the vunit_lib library. All necessary packages can be imported with the predefined vunit_context context.

A typical VUnit test bench file will have following entity declaration:

library vunit_lib;
context vunit_lib.vunit_context;

entity tb_example is
  generic (runner_cfg : string);
end entity;

Note that the context clause is VHDL-2008 syntax. So, make sure your project is configured accordingly: Right click project, Properties > VHDL Version > VHDL-2008.

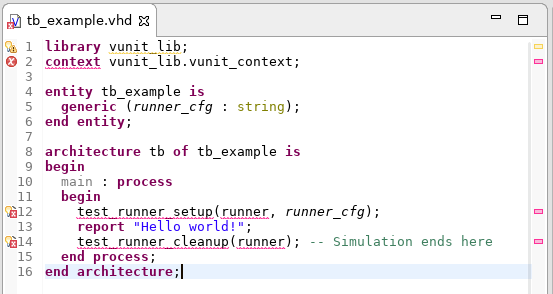

When you enter this VHDL snippet in a VHDL file in a Sigasi Studio project, you will see a warning (Library “vunit_lib” is not available) on the library clause and multiple errors because of references to missing declarations.

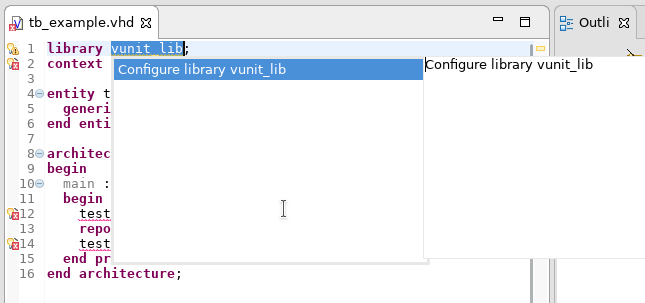

To automatically add the VUnit library to your project, click the light bulb icon to trigger the Quick Fix (or press Ctrl+F1 on the line with the warning).

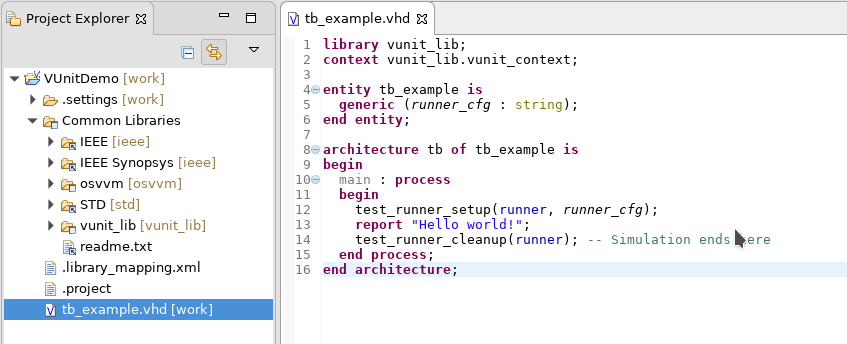

As a result the vunit_lib is added to your project (Note that this also adds the osvvm library). Under the hood, Sigasi Studio runs a Python script to query VUnit for the correct paths to the VUnit VHDL source files.

This also resolves the unresolved references to test_runner_setup and test_runner_cleanup. You can now easily navigate to their declaration with F3 (“Open Declaration”). You can also use autocomplete to quickly add other VUnit function calls.

Happy coding.
