Extension Setup

This page explains how to install and configure Sigasi Visual HDL (SVH).

Requirements

VS Code Version

The extension requires VS Code or VS Codium version 1.80.0 or higher.

Installation

You can install the extension from the VS Code marketplace .

To install the extension from VS Code:

  • Open the Extensions pane using Ctrl+Shift+X.
  • In the Search field on top, type Sigasi.

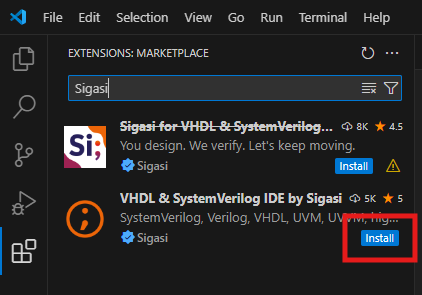

  • Click the Sigasi extension and click Install.
    VS Code Sigasi Marketplace Install Button

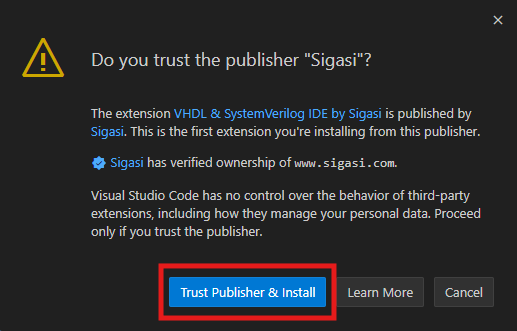

  • Before VS Code starts installing the extension, it verifies that you trust the publisher. Click Trust Publisher & Install.
    VS Code Trust Sigasi and Install

You can also download the self-contained VSIX file via the following download links:

If you’re working on a remote host for your HDL development, the extension only needs to be installed on the remote.

Licensing

More details can be found here. Your license unlocks the features for your edition.

Updating

VS Code supports automatic extension updates. Since VS Code version 1.85, fine-grained control about which extensions to auto-update is available.

If your Extensions: Auto Update setting is set to _Selected Extensions, you can right-click the Sigasi extension in the Extensions pane and select the Auto Update option. Doing so ensures that your Sigasi extension will be updated even when other extensions are not auto-updating.

Settings

You can reach the settings for the Sigasi extension as follows.

  • Open the Command Palette using Ctrl+Shift+P
  • Start typing and select Preferences: Open Settings (UI)
  • In the Search field on top, type Sigasi.
  • Optionally, configure the JRE location in Sigasi > Java: Path. Make sure to add the java executable name to the configured value.
  • First, configure the sigasi.pathToLicense setting. It can be a local node-locked license file or a floating license server, e.g., 27000@myserver.example.com.

Alternatively, you can access the Sigasi extension settings through the Manage icon () in the extensions overview.

Talkback and Telemetry

You can help improve the Sigasi extension for VS Code by enabling automatic submission of usage statistics and error stack traces through Talkback and telemetry. More information about these features is available on the Talkback page.

Talkback is disabled by default. To enable Talkback in the VS Code extension, enable the sigasi.enableTalkback setting.

The messages sent to Sigasi are logged locally. You can view these messages using the Sigasi: Open Talkback Log Folder command.

On Disk Caching

Disk caching is enabled by default in the Sigasi extension for VS Code. We recommend leaving it enabled as the cache will significantly speed up the extension by preserving the state from an earlier moment.

However, if you’d like to disable it, you can turn off the sigasi.server.caching.enableOnDiskCaching setting.
