Views

This page documents the views the SVH extension adds to VS Code.

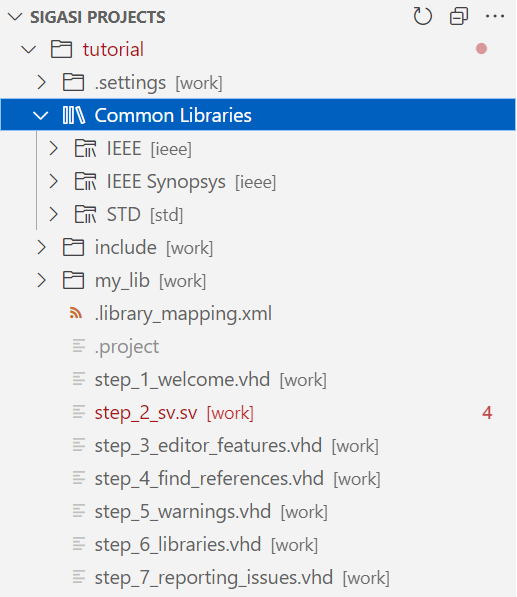

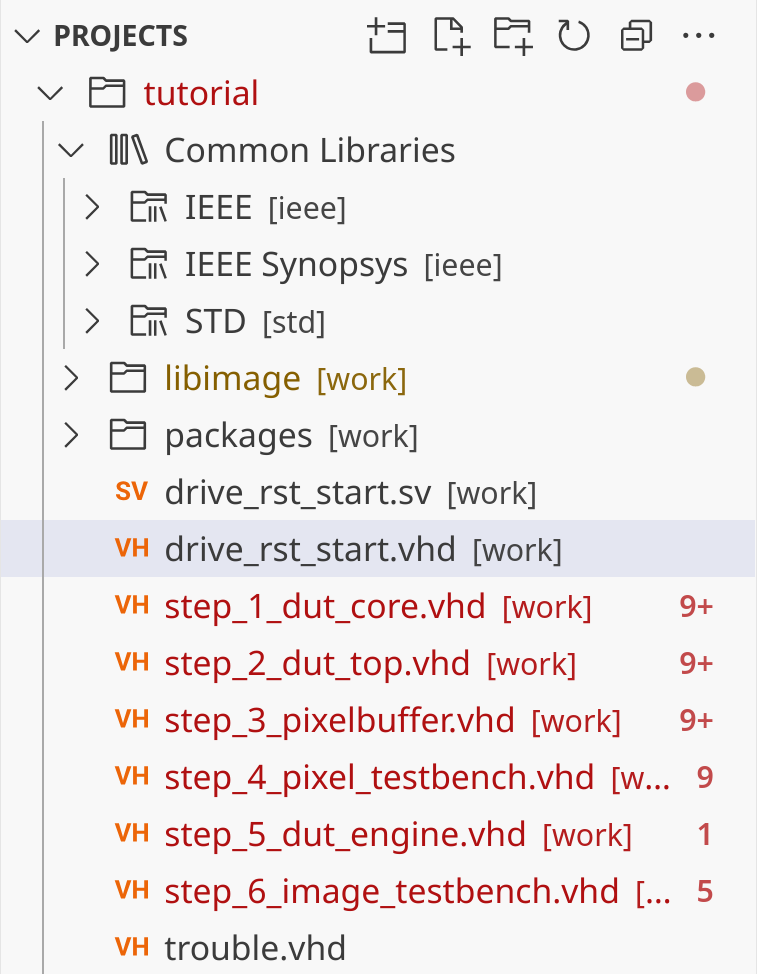

Sigasi Projects View

The Sigasi Projects View offers a file browser for your projects, including external folders that are not physically part of your project. This can be useful for including external IP in your projects.

The Projects View also offers a lot of custom Sigasi functionality, such as library mapping, version setting, and displaying the Preference View.

Linked Libraries

You can add any (external) libraries and files not within an open project’s folder using the Sigasi Projects View. In the Sigasi Projects View, right-click any file or folder and select the New Linked File… or New Linked Folder… option to add files and folders from outside the project location. The configuration of these external files and folders will be kept in the .project file in the project root.

You can add external files and folders anywhere in a project. If you add a large folder, for example, the unisim primitives, make sure to exclude the folder (Right-click > Configure > Exclude from Build) from being built and only include the required files. Alternatively, you can put the library files in a folder called Common Libraries. Then they will only be indexed and not analyzed for errors.

Buttons in the Sigasi Projects View

These buttons are available in the Sigasi Projects View:

• Create a new file
• Create a new folder
• Refresh
• Collapse all folders in the Sigasi Projects View
• More Actions
  • Follow Cursor: links the Sigasi Projects View with the editor
  • Hide Excluded Files: toggles whether excluded files should be hidden
  • Configure Excluded Files: opens settings to configure files exclusions

Excluding Files

Files can be excluded from showing up in the Sigasi Projects View. By default, project configuration files like .project, .library-mapping.xml, and .settings are filtered. The filtering can be customized through the following settings, accessible through the Configure Excluded Files button under More Actions:

• The sigasi.projectsView.exclude setting specifies a list of glob patterns to match files that will be excluded.
• The sigasi.projectsView.excludeNonHdlFiles setting ensures only HDL files are shown.
• The sigasi.projectsView.inheritGlobalExclude setting determines whether the global exclusion filter from VS Code should also be applied.

Filtering can be toggled through the Hide Excluded Files toggle button under More Actions.

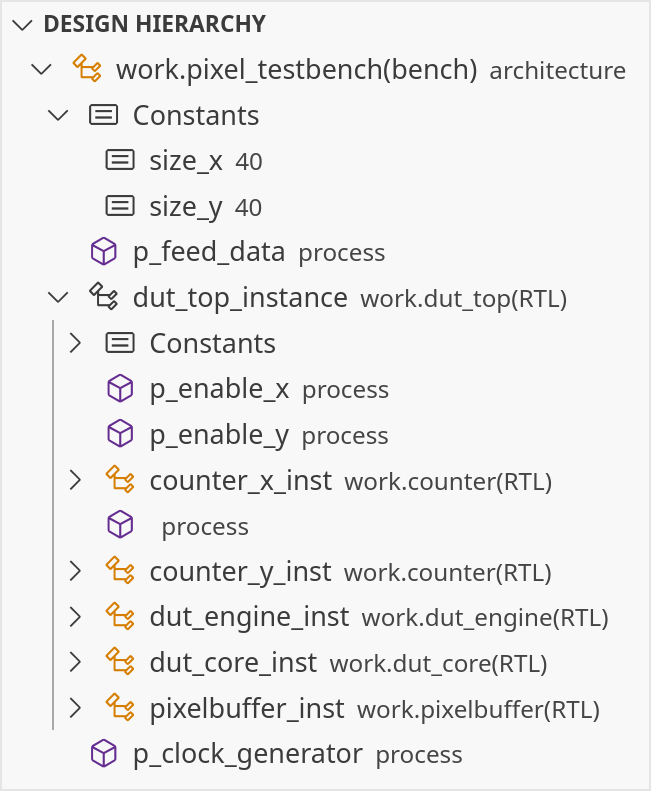

Design Hierarchy View

Initially, the Design Hierarchy View will be empty. To populate it, right-click an entity, architecture, or module name in the editor and select Set as Top Level from the context menu. This will populate the design hierarchy with the structure of your top level.

As you make changes to the design, the view won’t automatically refresh. To refresh the design hierarchy, use the refresh button ().

If you want the selection in the Design Hierarchy View to follow your position in the editor, make sure to enable Follow Cursor from the More Actions () menu.

Buttons in the Design Hierarchy View

These buttons are available in the Design Hierarchy View:

• Only show Instantiations (enabled)
• Only show Instantiations (disabled)
• Refresh the Design Hierarchy View
• Search the Design Hierarchy View
• Expand the full Design Hierarchy View
• Collapse the Design Hierarchy View
• More Actions
  • Follow Cursor: links the Design Hierarchy View with the editor
  • Auto Refresh
  • Sort by: Position
  • Sort by: Name
  • Sort by: Category

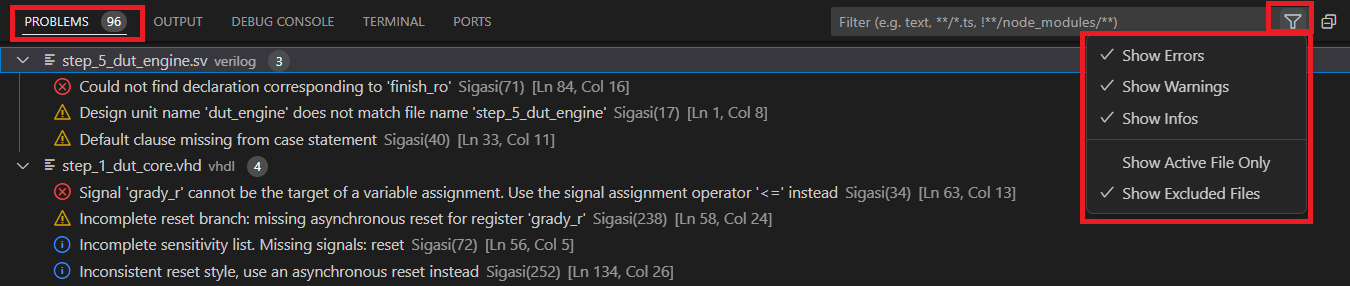

Problems View

The Problems View shows problems (errors, warnings, or info) related to your code. The Problems View is located at the bottom window by default. If it is not open, you can open it by going to View > Open View… and then selecting Problems.

Using the Problems View, you can navigate to the source of a problem by double-clicking on it. You can filter problems by using the filter icon located at the top-right.

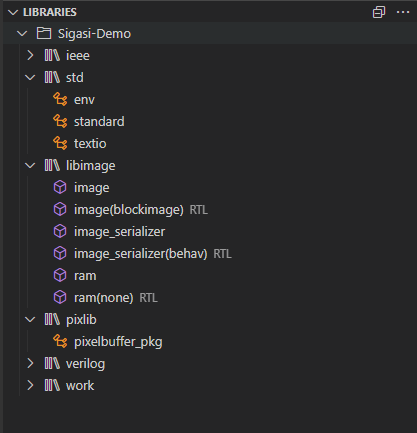

Libraries View

The Libraries View shows the library mapping as well as the description style of the design units in all projects. You can use it to navigate to a particular design unit in your project. When you click on a file, it will open in the editor.

Buttons in the Libraries View

These buttons are available in the Libraries View:

• Search the Libraries View
• Expand the Libraries View
• Collapse the Libraries View
• More Actions
  • Follow Cursor: links the Libraries View with the editor

UVM Topology View

Sigasi Visual HDL Professional Edition or Sigasi Visual HDL Enterprise Edition
[Only for SystemVerilog]

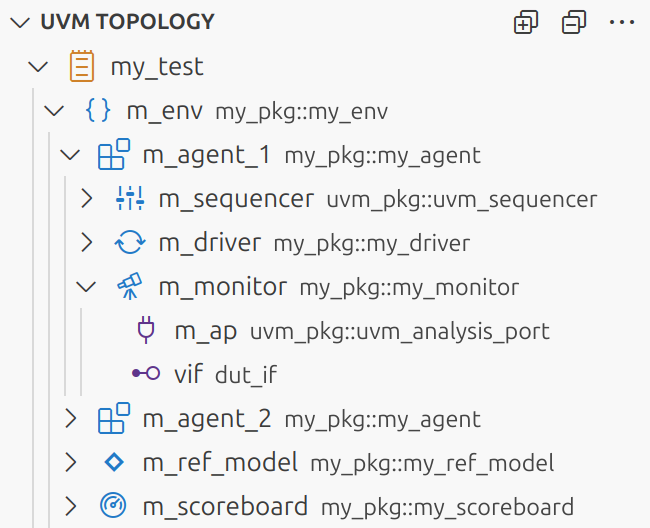

The UVM Topology View shows the verification environment’s component topology. Selecting a root UVM component will populate the UVM Topology View with the structure of the selected component and its children, including their ports and virtual interfaces.

As you make changes to the design, the UVM Topology View will automatically refresh.

You can navigate to a topology element in an editor by double-clicking it. Right-clicking an element opens a context menu with more navigation options: you can open the type, declaration, or instantiation of a selected element in an editor.

If you want the selection in the UVM Topology View to follow your position in the editor, make sure to enable Follow Cursor from the More Actions () menu. Otherwise, you can explicitly right-click and select Show In > UVM Topology on a UVM component class, a declaration of a component property, an instantiation assignment to this property, or a port connection statement to select the corresponding element in the UVM Topology View.

Buttons in the UVM Topology View

These buttons are available in the UVM Topology View:

• Search the UVM Topology View
• Expand all components
• Collapse all components
• More Actions
  • Follow Cursor: links the UVM Topology View with the editor
  • Sort by: Position: sort components, ports, and interfaces by position in the source code
  • Sort by: Name (sort components, ports, and interfaces alphabetically)

Select Root UVM Component

To choose a root UVM component, open a file and right-click its class name in the editor. Then click Set as Root UVM Component in the context menu. The selected component structure will be shown in the UVM Topology and Diagram views.

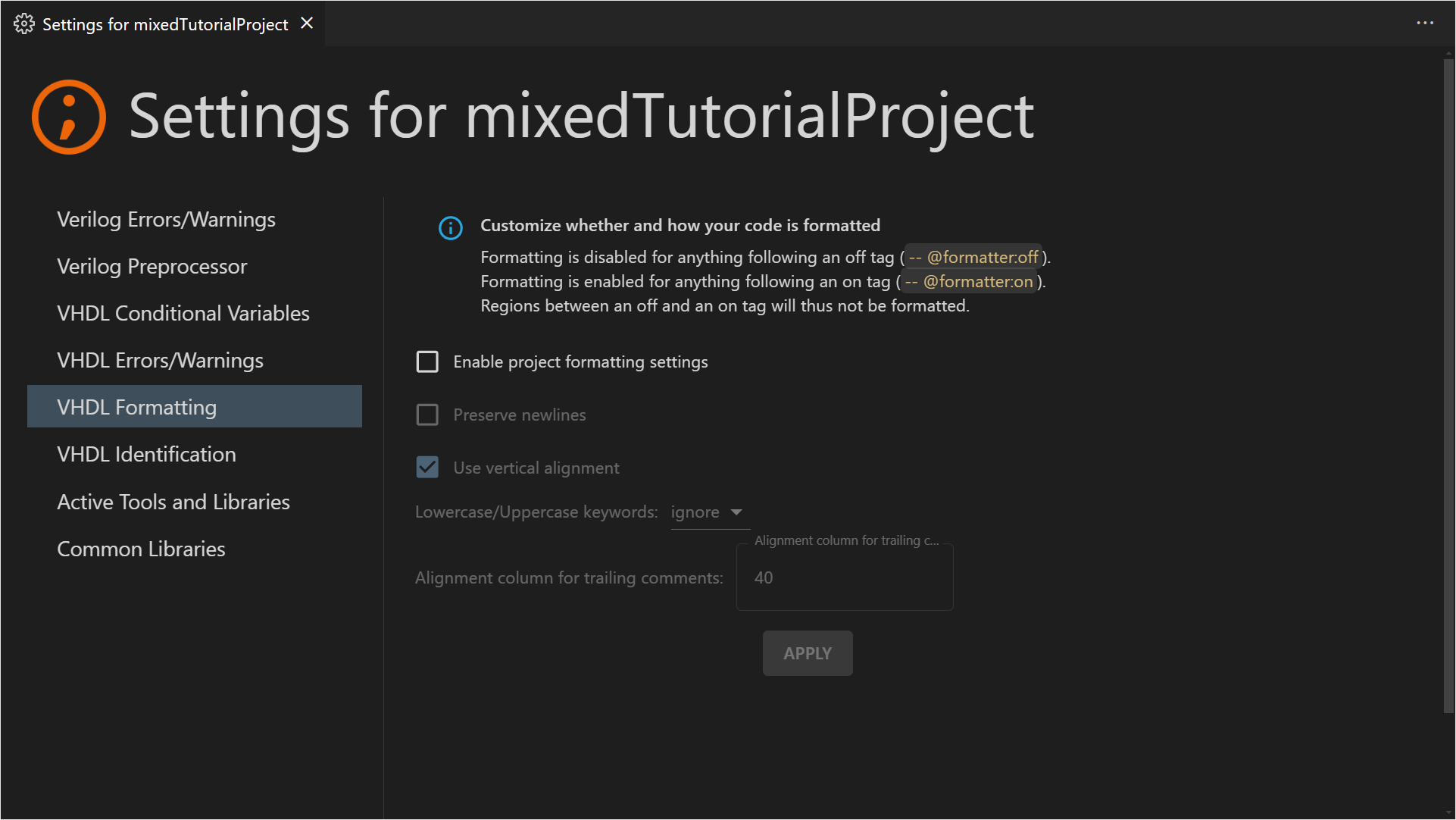

Preference View

To open the Preference View, right-click the project, folder, or file you want to configure in the Sigasi Projects View. This view allows you to configure all preferences for the selected project, folder, or file.

• Change the severity of linting rules for your project
• Tweak validation parameters
• Modify conditional variables for VHDL 2019 projects
• Configure include paths and initial defines for the SystemVerilog Preprocessor

Make sure to click the APPLY button at the top right after making your changes.

Changes you make here will be stored in the .settings/ folder within your project. This way, if you commit the settings with your project, they will be available for your fellow team members.

Configuring Linting Rules

You can configure linting rules per project, folder, or file by right-clicking on its name in the Projects View, selecting Configure > Open [Project/Folder/File] Preferences and navigating to Verilog Errors/Warnings or VHDL Errors/Warnings.

Refer to the linting documentation to learn more.

Graphical Views

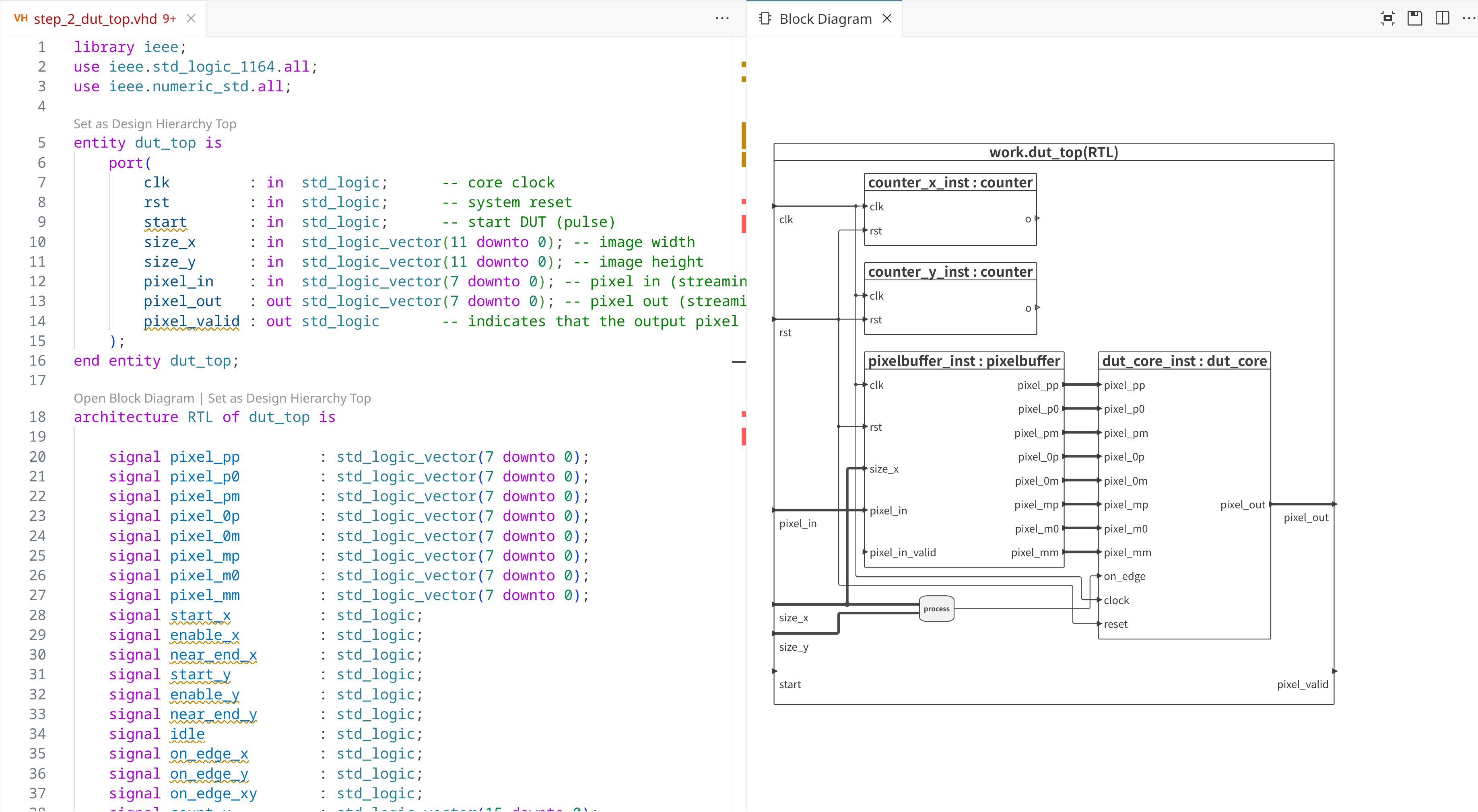

Block Diagram

Sigasi Visual HDL Professional Edition or Sigasi Visual HDL Enterprise Edition

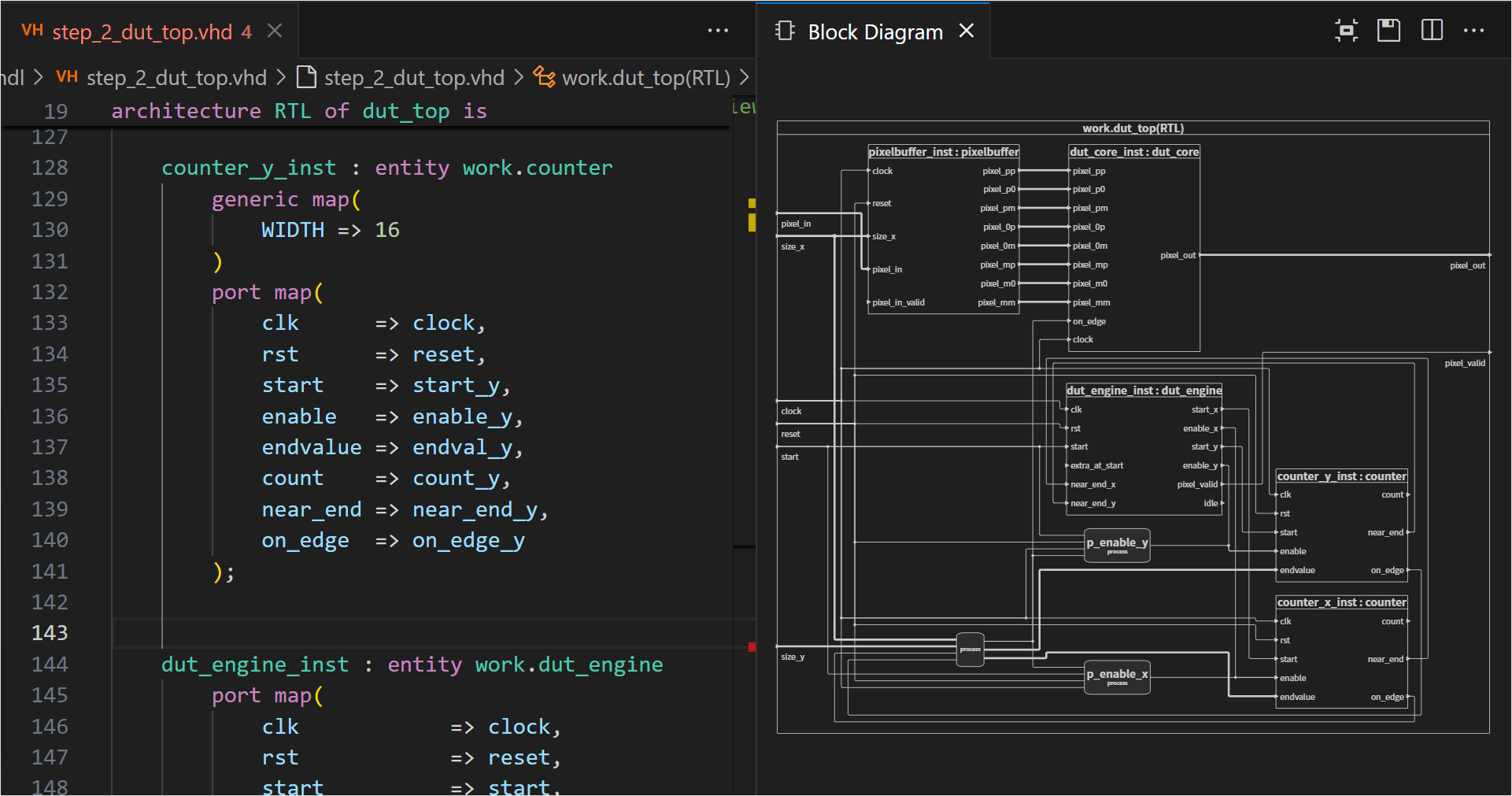

The Block Diagram displays a graphical view of all architectures, modules, their instantiations, and generate constructs in your selected editor’s VHDL or SystemVerilog code. VHDL processes and SystemVerilog always blocks are also shown in the block diagram.

This view automatically updates while you are editing your code and offers a convenient way to visually inspect and navigate your code, even when it’s unfinished or broken.

You can open the Block Diagram by clicking the Sigasi logo in the editor toolbar (top right) and selecting Open Block Diagram. Alternatively, you can open the view using the command palette Ctrl+Shift+P and typing Sigasi: Open Block Diagram.

You can double-click blocks, ports, or wires to navigate to the corresponding HDL code. If you want to go into a block, you right-click it, and select Open Entity Declaration, Open Architecture, or Open Module.

You can also nagivate from your code to the Block Diagram. To reveal a specific signal, port, process, generate, or instantiation: right click it, select Show In… in the context menu, then select Block Diagram in the pop-up menu. Show In… can also be accessed directly from the hover of an applicable code element.

You can export the Block Diagram to an SVG with the save button on the toolbar.

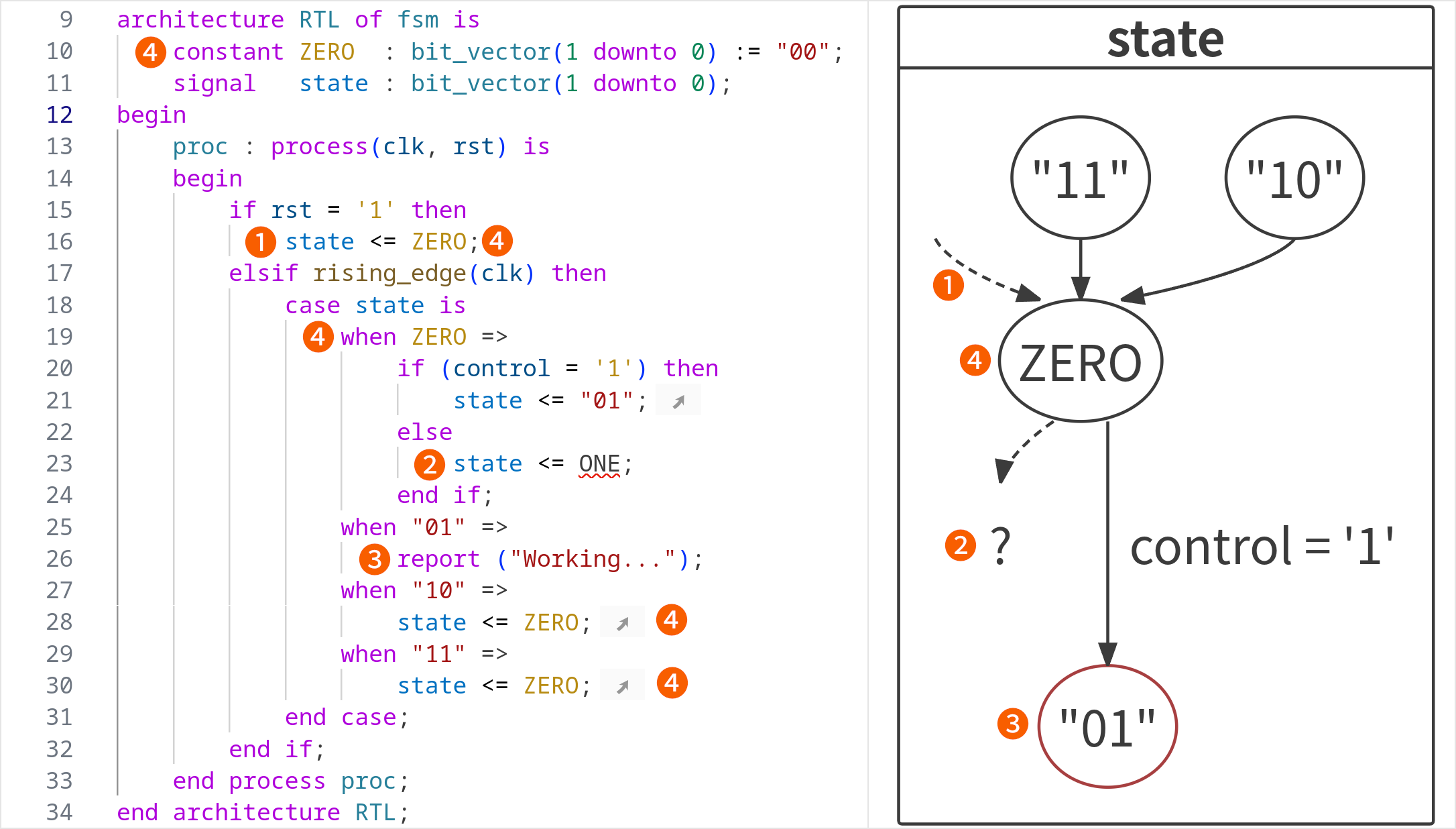

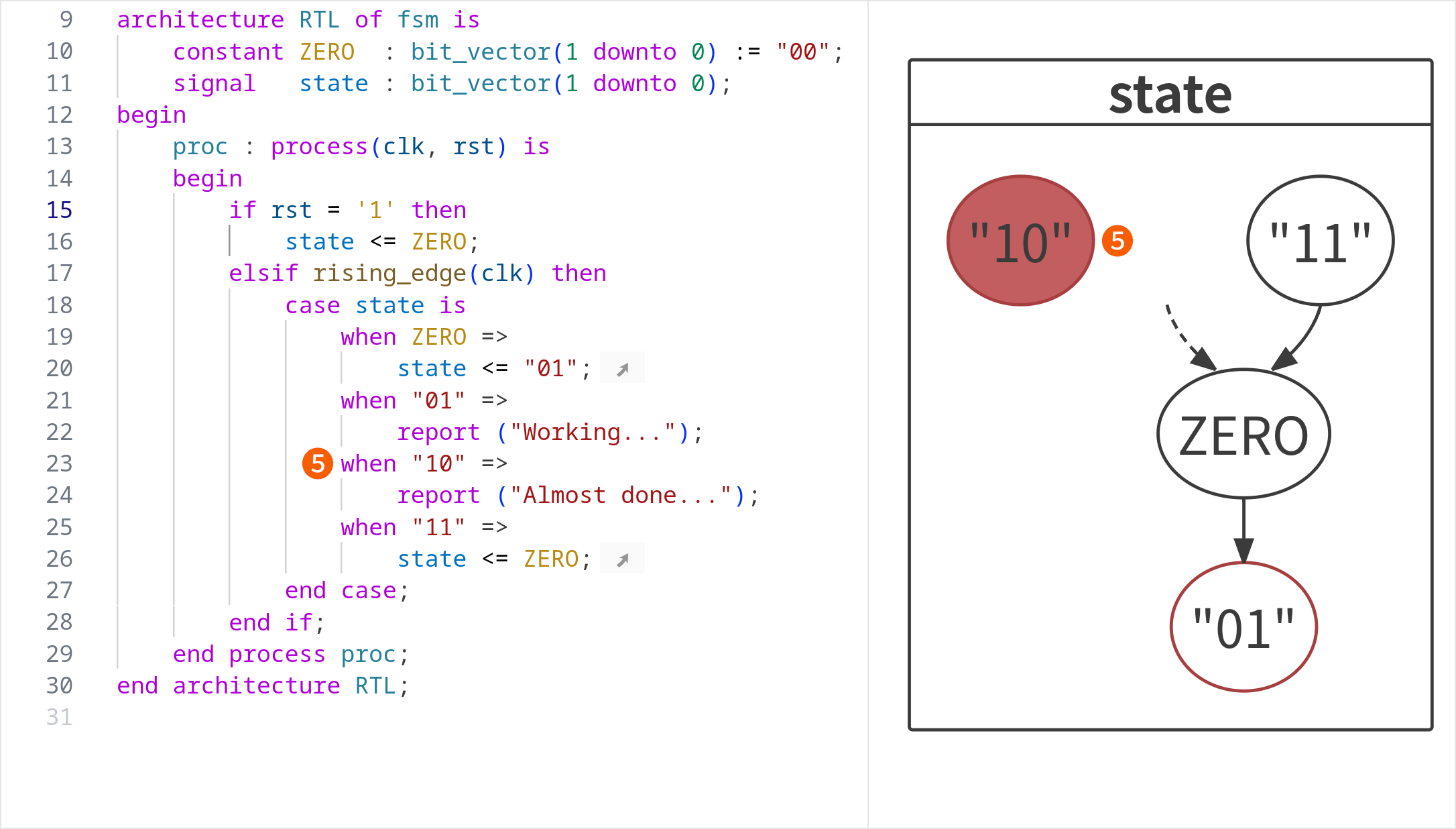

State Machines Diagram

Sigasi Visual HDL Professional Edition or Sigasi Visual HDL Enterprise Edition

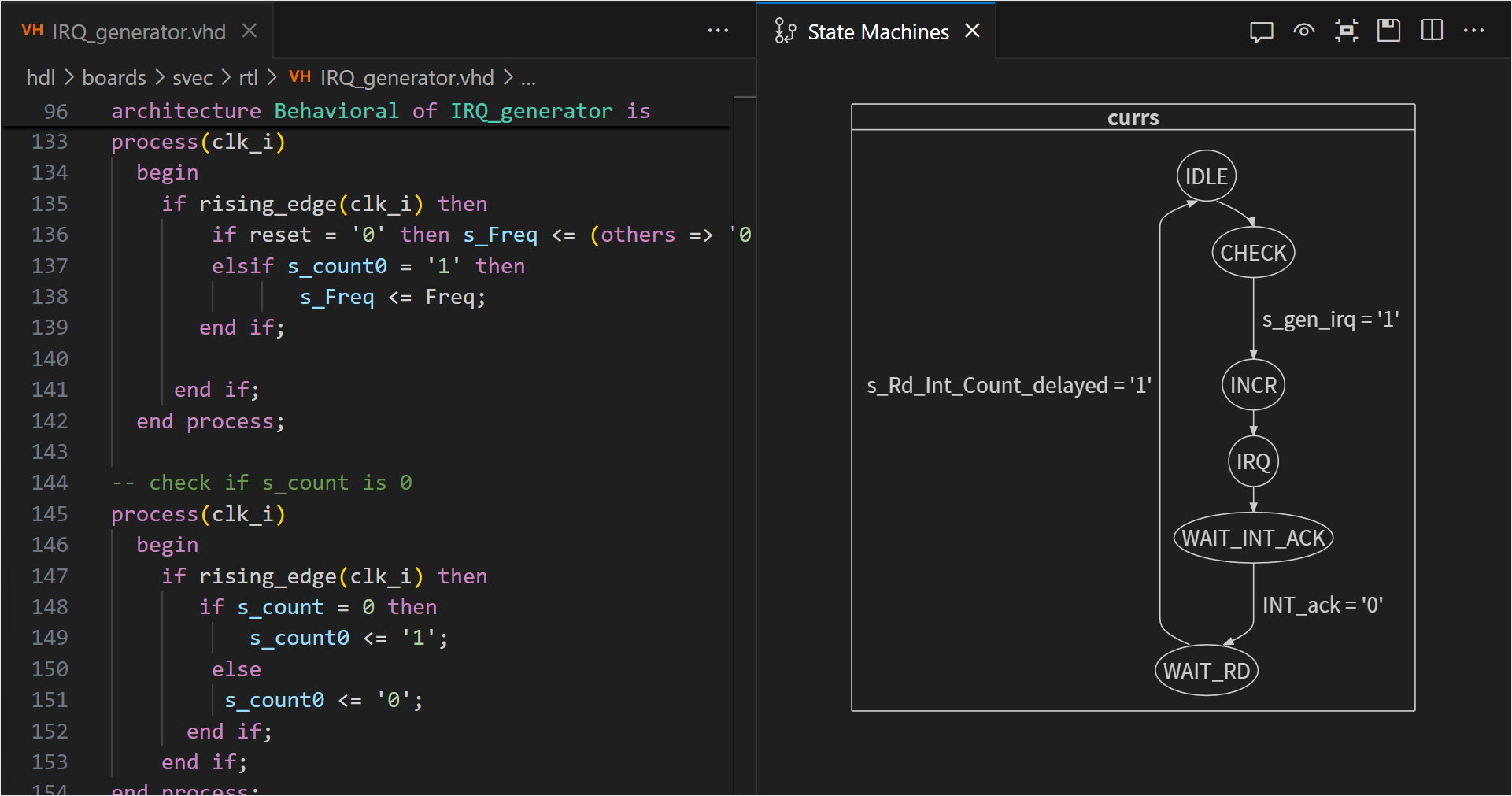

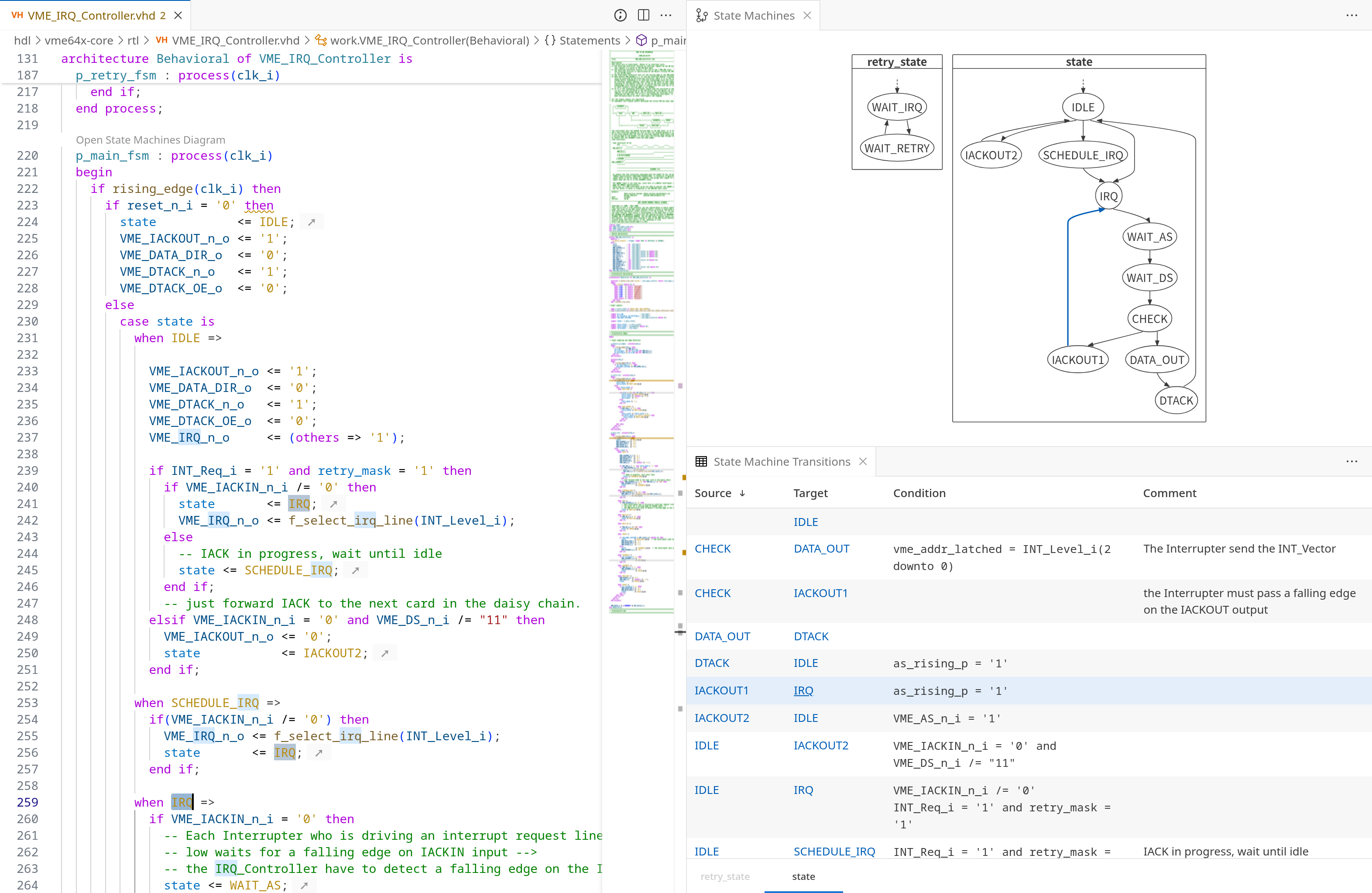

The State Machines Diagram displays a graphical (bubble diagram) view of all state machines in your current VHDL or SystemVerilog editor. This viewer automatically updates while you are editing your code and offers a convenient way to visually inspect and navigate your code, even when your code is unfinished or broken.

You can open the State Machines Diagram by clicking the Sigasi logo in the editor toolbar (top right) and selecting Open State Machines Diagram. Alternatively, you can open the view using the command palette Ctrl+Shift+P and typing Sigasi: Open State Machines Diagram.

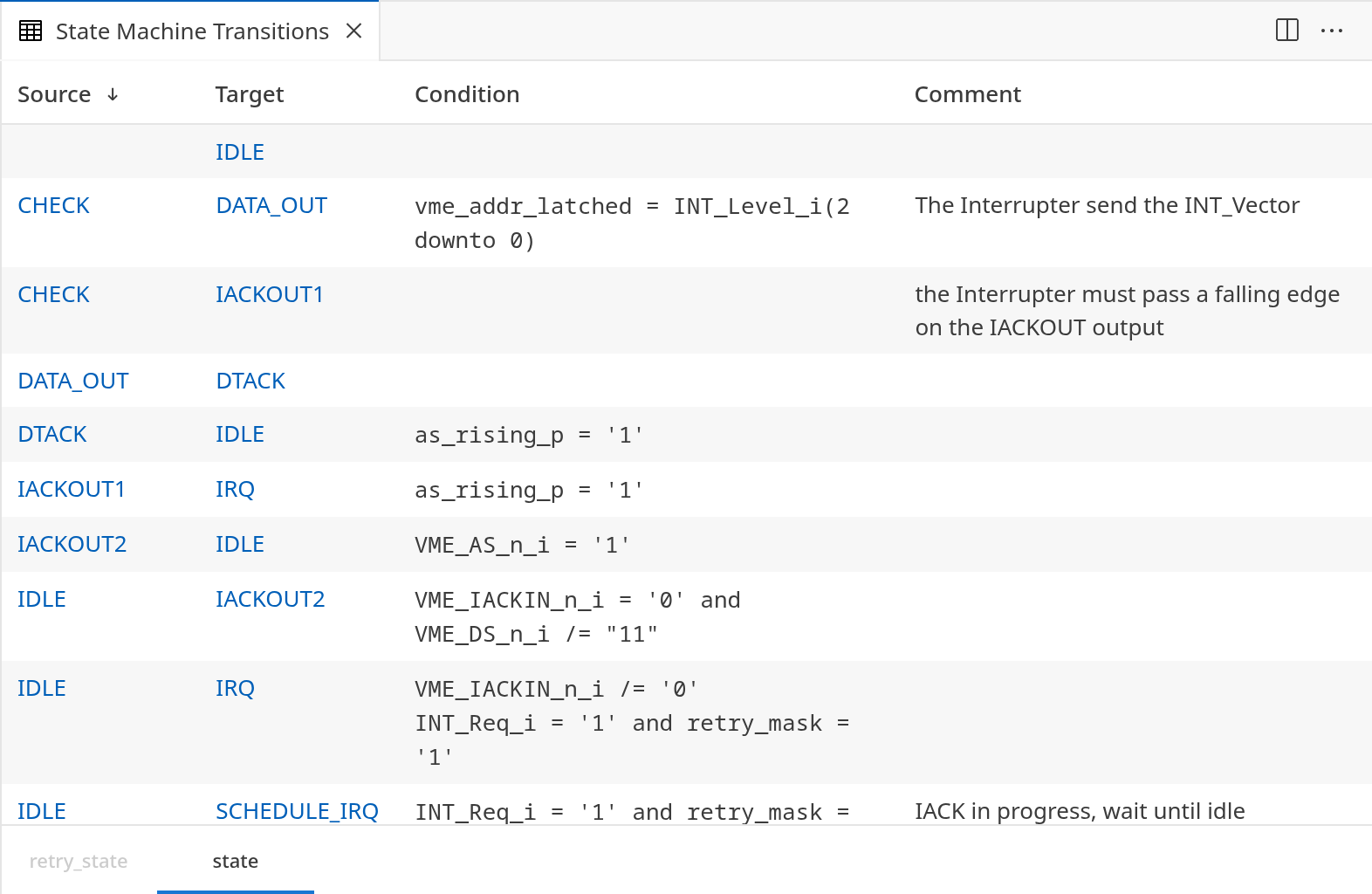

If you have documented your state transitions (i.e., the assignments), the comments will be added as text to the transitions in the view.

You can double-click nodes or transitions to navigate to the corresponding HDL code.

With the hide comments button, you can toggle the display of comments on edge labels.
With the hide conditions button, you can toggle the display of comments on edge labels. These labels show the code comments of the transition statements.
You also have the option to Zoom In, Zoom Out, or Zoom to Fit.

You can export state machines to an SVG with the save button.

Dependencies Diagram

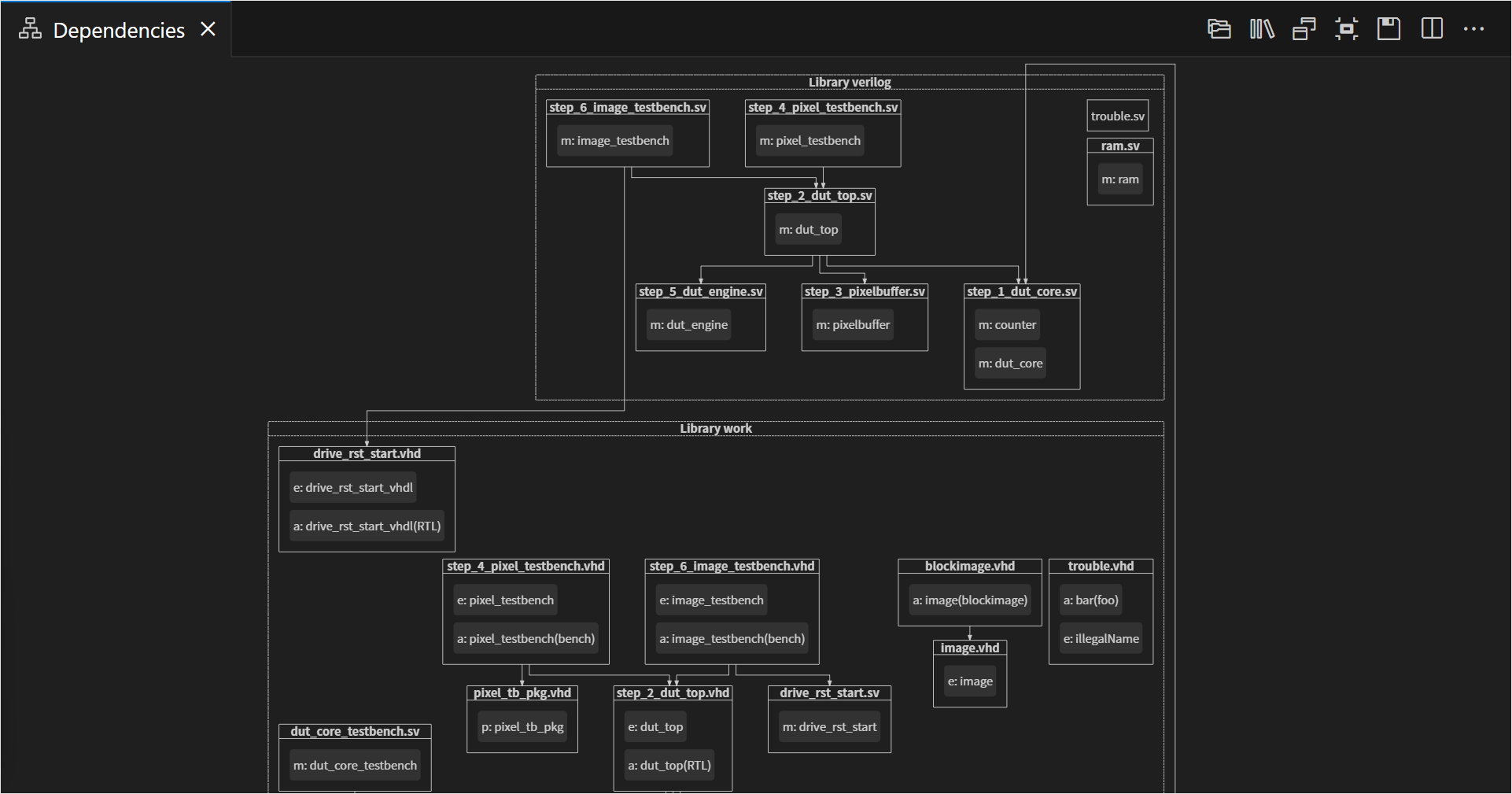

The Dependencies Diagram visualizes the dependencies of your VHDL, SystemVerilog, or mixed language projects. This view shows the relationships between your source files and makes it easy to see top levels and important packages. The Dependencies Diagram also makes it easy to detect orphaned files.

The view is automatically updated each time you save your files.

You can open the Dependencies Diagram by clicking the Sigasi logo in the editor toolbar (top right) and selecting Open Dependencies Diagram. Alternatively, you can open the view using the command palette Ctrl+Shift+P and typing Sigasi: Open Dependencies Diagram.

The Dependencies Diagram has the following options:

• shows dependencies of the entire project, which you can uncheck to focus on the active editor dependencies only
• groups design files per library
• shows design units inside design files prefixed with an abbreviation of their kind architecture, module, package, etc.

The Dependencies Diagram can help you navigate, too. Double-click a file name in the diagram to open the corresponding editor.

You can also nagivate from your code to the Dependencies Diagram. To reveal a specific design unit: right click it, select Show In… in the context menu, then select Dependencies Diagram in the pop-up menu. Show In… can also be accessed directly from the hover of an applicable code element.

You can export this diagram for documentation by clicking the save button.

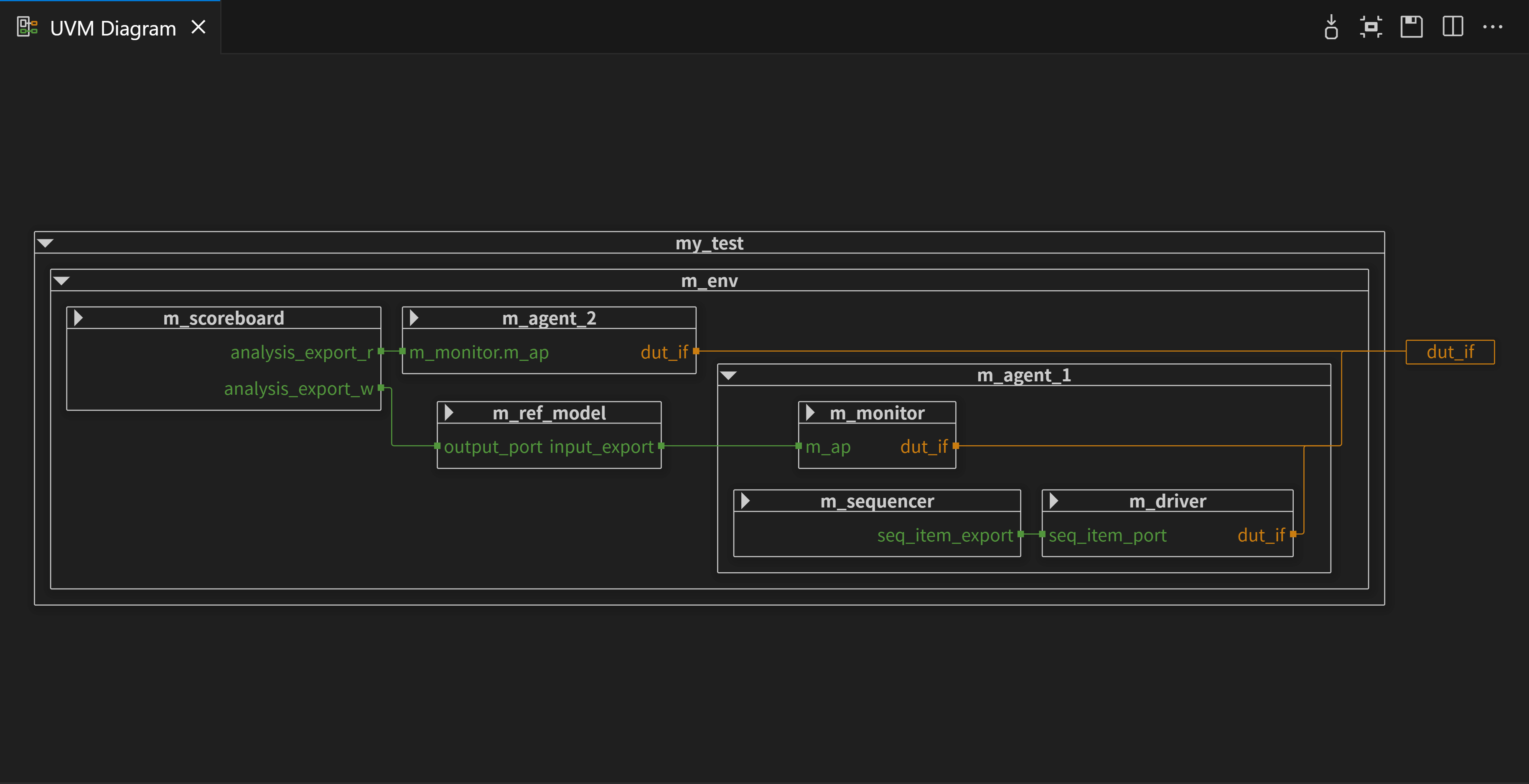

UVM Diagram

Sigasi Visual HDL Professional Edition or Sigasi Visual HDL Enterprise Edition
[Only for SystemVerilog]

The UVM Diagram displays a graphical representation of the root UVM component structure through an intuitive graphical display. It visualizes the relationships between components, their hierarchical arrangement in the topology, the connections between ports, and the referenced design interfaces. The dynamic expansion of the diagram allows for efficient tracking of connections throughout the UVM component structure.

You can open the UVM Diagram by clicking the Sigasi logo in the editor toolbar (top right) and selecting Open UVM Diagram. Alternatively, you can open the view using the command palette Ctrl+Shift+P and typing Sigasi: Open UVM Diagram.

Similar to the UVM Topology View, this diagram offers a set of navigation options for each element (both by double-clicking on elements and through the context menu), allowing you to access an element’s types, declarations, or instantiations. Double-clicking on a port connection line navigates to the corresponding connect method call in the source code.

Like other diagram views, you can find buttons on the toolbar to Zoom to Fit and export the UVM Diagram as an SVG.

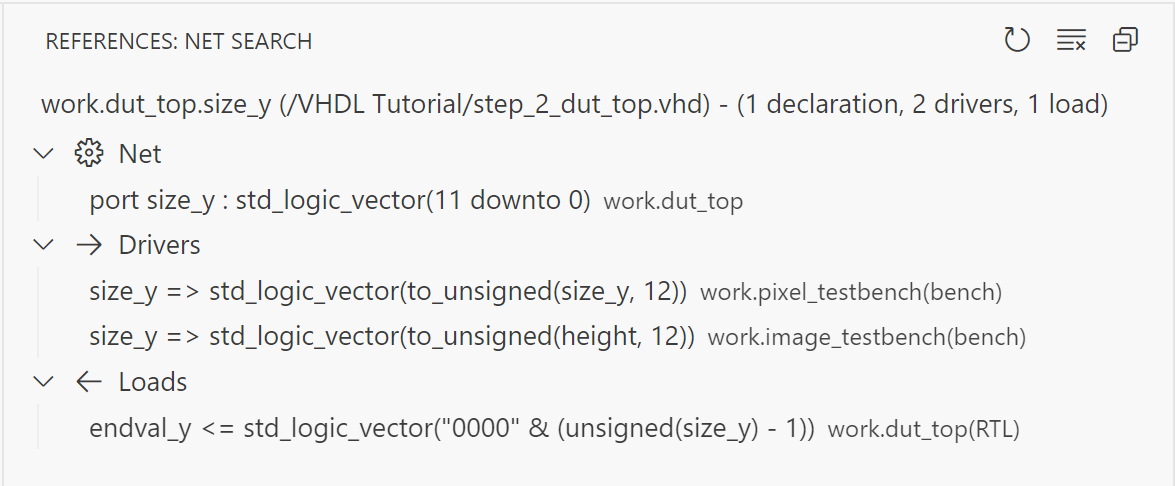

Net Search View

[Only for VHDL]

With Net Search, you can find a net’s loads and drivers. A net is defined as a signal or port and all other signals and ports that are directly connected to it. The loads are where you read the value of a net, and the drivers are where you write to it.

To find the entire signal or port net, place your cursor on the identifier and right-click, then select Find Net. Alternatively, you can press Ctrl+Shift+H.

The Net Search View will appear. For big designs, it might take a while before the results appear.

From the Net Search View, you can navigate to the code by either double-clicking a search result or using the keyboard shortcuts. Press F4 to move to the next entry and Shift+F4 to go to the previous one, assuming the default keybindings are in place.

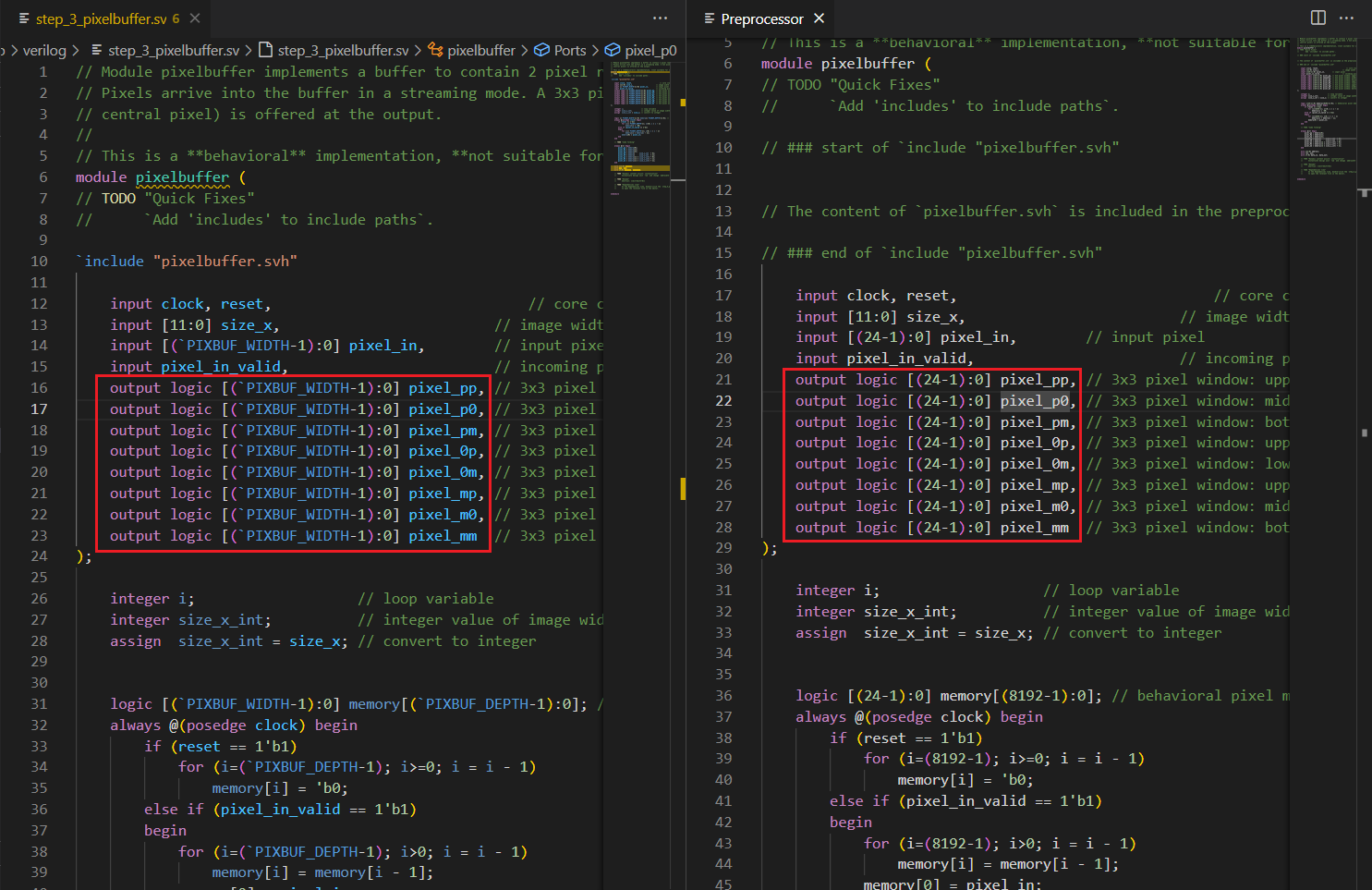

Preprocessor View

[Only for SystemVerilog]

You can open the Preprocessor View by clicking the Sigasi logo in the editor toolbar (top right) and selecting Open Preprocessor View. Alternatively, you can open the view using the command palette Ctrl+Shift+P and typing Sigasi: Open Preprocessor View.

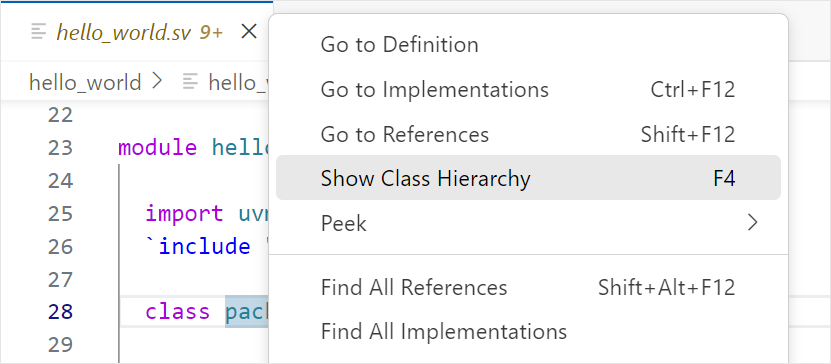

Class Hierarchy View

[Only for SystemVerilog]

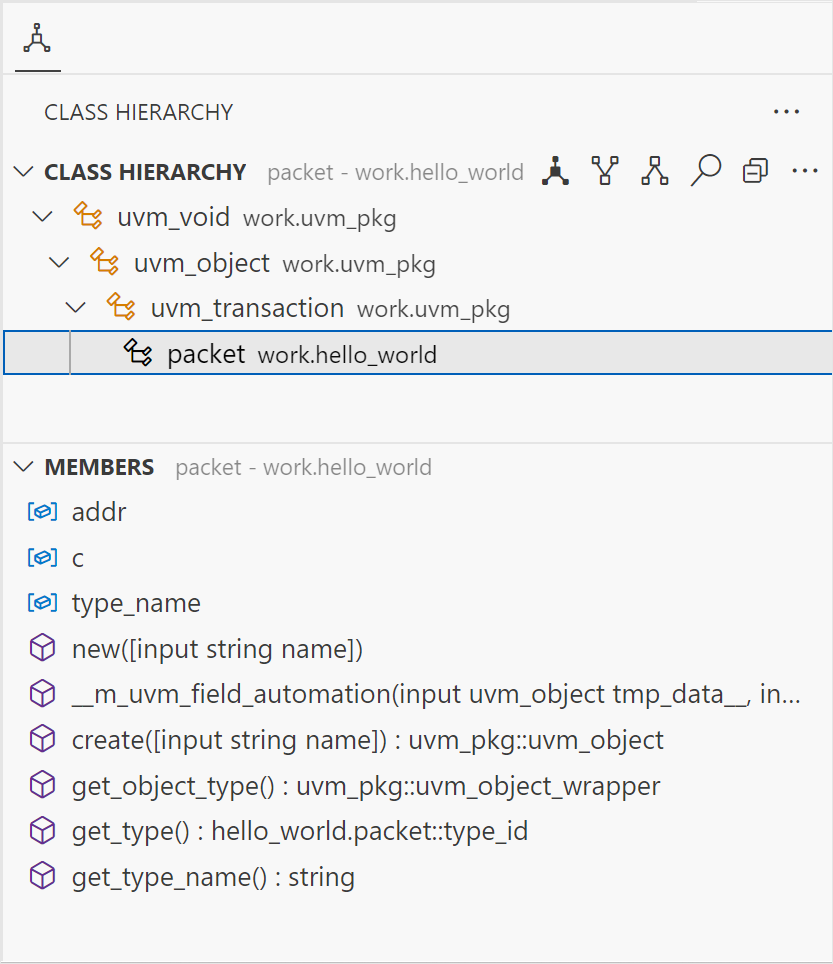

The Class Hierarchy View displays more information about the hierarchy of a class. It consists of a hierarchy tree and a list of its class members. To open the Class Hierarchy of a class, right-click the class name, and select Show Class Hierarchy (or press F4).

Class Hierarchy Tree

The class hierarchy tree displays the superclasses, subclasses, or both.

Icon	Command	Description
	Class Hierarchy	Displays all superclasses and subclasses.
	Superclass Hierarchy	Displays all superclasses and implemented interface classes.
	Subclass Hierarchy	Displays all subclasses that extend or implement the selected (interface) class.
	Search	Searches the Class Hierarchy.
	Toggle Show Qualified Class Names	Shows the qualified name next to each class.

Member List

The member list shows all members (fields, functions, tasks, and constructors) of a selected class in the class hierarchy tree.

The icon shown in the view describes the current active state of the members list options.

Icon	Command	Description
	Show Inherited Members	Shows members inherited from superclasses.
	Hide Inherited Members	Hides members inherited from superclasses.
	Show Fields	Shows fields in the members list.
	Hide Fields	Hides fields in the members list.
	Search	Searches the Members.
	Toggle Sort By Defining Class	Sorts members by the class in which they are defined.

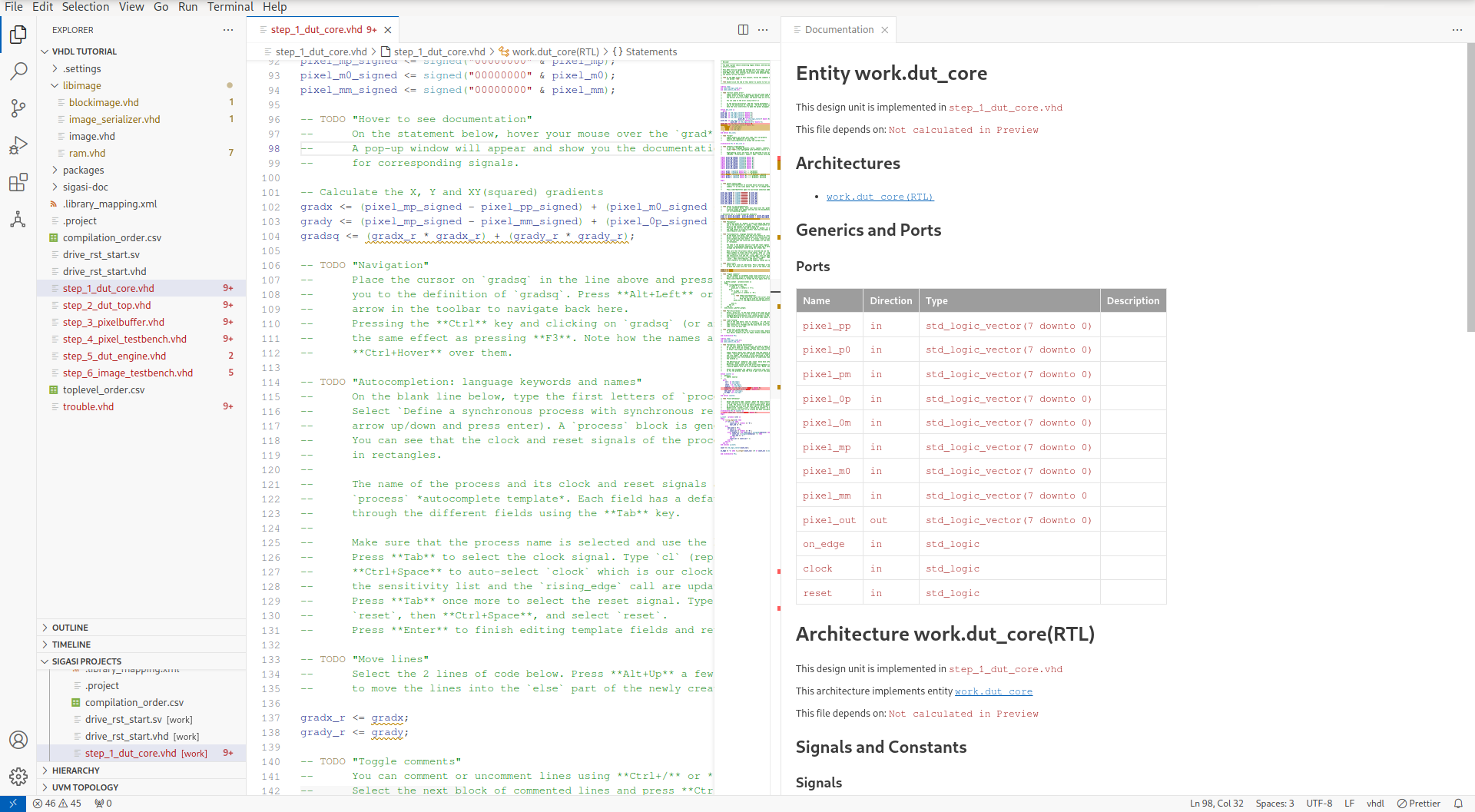

Documentation View

The Documentation View gives you a live preview of the automatic documentation SVH can generate for your project.

You can open the Documentation View by clicking the Sigasi logo in the editor toolbar (top right) and selecting Open Documentation View. Alternatively, you can open the view using the command palette Ctrl+Shift+P and typing Sigasi: Open Documentation View.
